Seismic Interpretation
Approach Aids Multiattribute Analysis
By Rocky Roden and Deborah King Sacrey
HOUSTON–Seismic attributes, which are any measureable properties of seismic data, aid interpreters in identifying geologic features that are not understood clearly in the original data. However, the enormous amount of information generated from seismic attributes, and the difficulty in understanding how these attributes–when combined–define geology, requires another approach in the interpretation workflow.
To address these issues, “machine learning” to evaluate seismic attributes has evolved over the last few years. Machine learning uses computer algorithms that learn iteratively from the data and adapt independently to produce reliable, repeatable results. Applying current computing technology and visualization techniques, machine learning addresses two significant issues in seismic interpretation:
- The big data problem of trying to interpret dozens, if not hundreds, of volumes of data; and
- The fact that humans cannot understand the relationship of several types of data all at once.
Principal component analysis (PCA) and self-organizing maps (SOMs) are machine learning approaches that when applied to seismic multiattribute analysis are producing results that reveal geologic features not previously identified or easily interpreted. Applying principal component analysis can help interpreters identify seismic attributes that show the most variance in the data for a given geologic setting, which helps determine which attributes to use in a multiattribute analysis using self-organizing maps.
SOM analysis enables interpreters to identify the natural organizational patterns in the data from multiple seismic attributes.
Multiple-attribute analyses are beneficial when single attributes are indistinct. These natural patterns or clusters represent geologic information embedded in the data, and can help identify geologic features, geobodies, and aspects of geology that often cannot be interpreted by any other means. SOM evaluations have proven to be beneficial in essentially all geologic settings, including unconventional resource plays, moderately compacted onshore regions, and offshore unconsolidated sediments.
This indicates the appropriate seismic attributes to employ in any SOM evaluation should be based on the interpretation problem to be solved and the associated geologic setting. Applying PCA and SOM can not only identify geologic patterns not seen previously in the seismic data, it also can increase or decrease confidence in features already interpreted. In other words, this multiattribute approach provides a methodology to produce a more accurate risk assessment of a geoscientist’s interpretation, and may represent the next generation of advanced interpretation.
Seismic Attributes

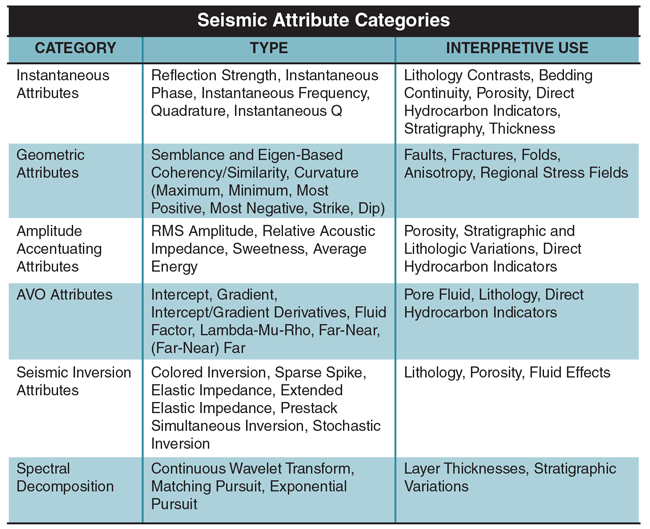

A seismic attribute can be defined as any measure of the data that helps to visually enhance or quantify features of interpretation interest. There are hundreds of types of attributes, but Table 1 shows a composite list of seismic attributes and associated categories routinely employed in seismic interpretation. Interpreters wrestle continuously with evaluating the numerous seismic attribute volumes, including visually co-blending two or three attributes and even generating attributes from other attributes in an effort to better interpret their data.
This is where machine learning approaches such as PCA and SOM can help interpreters evaluate their data more efficiently, and help them understand the relationships between numerous seismic attributes to produce more accurate results.
Principal Component Analysis
Principal component analysis is a linear mathematical technique for reducing a large set of seismic attributes to a small set that still contains most of the variation in the large set. In other words, PCA is a good approach for identifying the combination of the most meaningful seismic attributes generated from an original volume.
The first principal component accounts for as much of the variability in the data as possible, and each succeeding component (orthogonal to each preceding component) accounts for as much of the remaining variability. Given a set of seismic attributes generated from the same original volume, PCA can identify the attributes producing the largest variability in the data, suggesting these combinations of attributes will better identify specific geologic features of interest.
Even though the first principal component represents the largest linear attribute combinations best representing the variability of the bulk of the data, it may not identify specific features of interest. The interpreter should evaluate succeeding principal components also because they may be associated with other important aspects of the data and geologic features not identified with the first principal component.
In other words, PCA is a tool that, when employed in an interpretation workflow, can give direction to meaningful seismic attributes and improve interpretation results. It is logical therefore, that a PCA evaluation may provide important information on appropriate seismic attributes to take into generating a self-organizing map.
Self-Organizing Maps
The next level of interpretation requires pattern recognition and classification of the often subtle information embedded in the seismic attributes. Taking advantage of today’s computing technology, visualization techniques and understanding of appropriate parameters, self-organizing maps distill multiple seismic attributes efficiently into classification and probability volumes. SOM is a powerful nonlinear cluster analysis and pattern recognition approach that helps interpreters identify patterns in their data that can relate to desired geologic characteristics such as those listed in Table 1.
Seismic data contain huge amounts of data samples, and are highly continuous, greatly redundant and significantly noisy. The tremendous amount of samples from numerous seismic attributes exhibit significant organizational structure in the midst of noise. SOM analysis identifies these natural organizational structures in the form of clusters. These clusters reveal significant information about the classification structure of natural groups that is difficult to view any other way. The natural groups and patterns in the data identified by clusters reveal the geology and aspects of the data that are difficult to interpret otherwise.
Offshore Case Study
A case study is provided by a lease located in the Gulf of Mexico offshore Louisiana in 470 feet of water. This shallow field (approximately 3,900 feet) has two producing wells that were drilled on the upthrown side of an east-west trending normal fault and into an amplitude anomaly identified on the available 3-D seismic data. The normally pressured reservoir is approximately 100 feet thick, and is located in a typical “bright spot” setting, i.e. a Class 3 AVO geologic setting.
The goal of this multiattribute analysis is to more clearly identify possible direct hydrocarbon indicator characteristics such as flat spots (hydrocarbon contacts) and attenuation effects, and to better understand the reservoir and provide important approaches for decreasing the risk of future exploration in the area.
Initially, 18 instantaneous seismic attributes were generated from the 3-D data in the area. These were put into a PCA evaluation to determine which produced the largest variation in the data and the most meaningful attributes for SOM analysis.

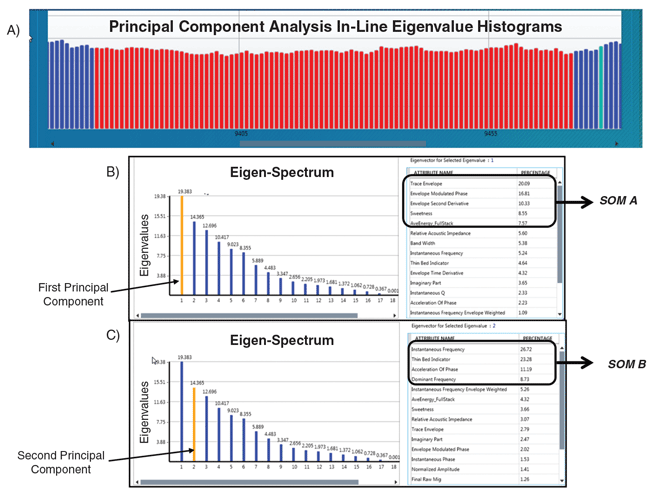

The PCA was computed in a window 20 milliseconds above and 150 milliseconds below the mapped top of the reservoir over the entire survey, which encompassed approximately 10 square miles. Each bar in Figure 1A represents the highest eigenvalue on its associated in-line over the portion of the survey displayed.
An eigenvalue shows how much variance there is in its associated eigen-vector, and an eigen-vector is the direction showing the spread in the data. The red bars in Figure 1A specifically denote the in-lines that cover the areal extent of the amplitude feature, and the average of their eigenvalue results are displayed in Figures 1B and 1C.
Figure 1B displays the principal components from the selected in-lines over the anomalous feature with the highest eigenvalue (first principal component), indicating the percentage of seismic attributes contributing to this largest variation in the data. In this first principal component, the top seismic attributes include trace envelope, envelope modulated phase, envelope second derivative, sweetness and average energy, all of which account for more than 63 percent of the variance of all the instantaneous attributes in this PCA evaluation.
Figure 1C displays the PCA results, but this time the second highest eigenvalue was selected and produced a different set of seismic attributes. The top seismic attributes from the second principal component include instantaneous frequency, thin bed indicator, acceleration of phase, and dominant frequency, which total almost 70 percent of the variance of the 18 instantaneous seismic attributes analyzed. These results suggest that when applied to an SOM analysis, perhaps the two sets of seismic attributes for the first and second principal components will help define different types of anomalous features or different characteristics of the same feature.
The first SOM analysis (SOM A) incorporates the seismic attributes defined by the PCA with the highest variation in the data, i.e., the five highest percentage-contributing attributes in Figure 1B.
Several neuron counts for SOM analyses were run on the data, and lower count matrices revealed broad, discrete features, while the higher counts displayed more detail and less variation. The SOM results from a five-by-five matrix of neurons (25) were selected for this article.
Detecting Attenuation

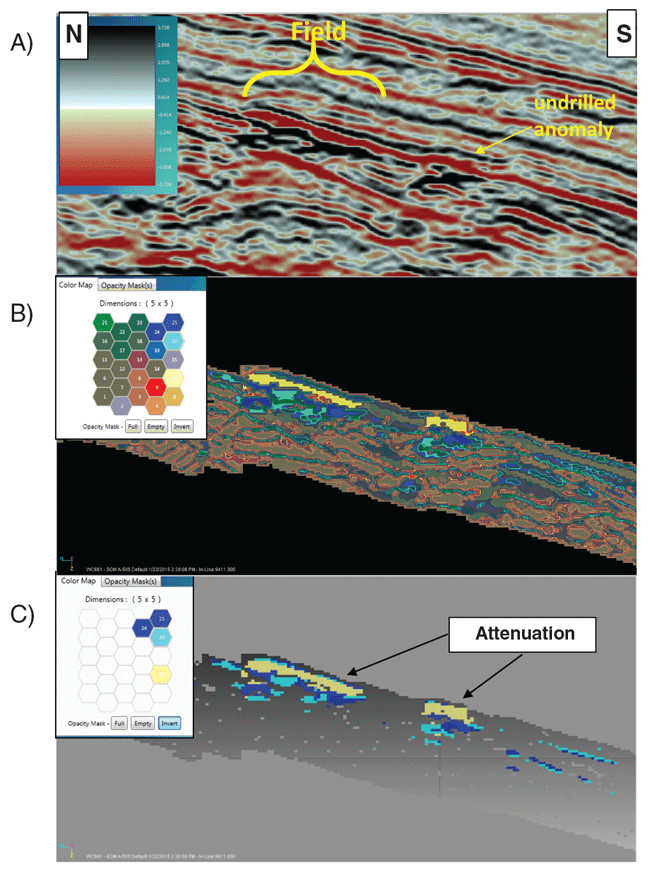

The north-south line through the field in Figures 2 and 3 show the original stacked amplitude data and classification results from the SOM analyses. In Figure 2B, the color map associated with the SOM classification results indicates all 25 neurons are displayed. Figure 2C shows results with four interpreted neurons highlighted.
Based on the location of the hydrocarbons determined from well control, it is interpreted from the SOM results that attenuation in the reservoir is very pronounced. As Figures 2B and 2C reveal, there is apparent absorption banding in the reservoir above the known hydrocarbon contacts defined by the wells in the field. This makes sense because the seismic attributes employed are sensitive to relatively low-frequency, broad variations in the seismic signal often associated with attenuation effects.
This combination of seismic attributes employed in the SOM analysis generates a more pronounced and clearer picture of attenuation in the reservoir than any of the seismic attributes or the original amplitude volume individually. Downdip of the field is another undrilled anomaly that also reveals apparent attenuation effects.
The second SOM evaluation (SOM B) includes the seismic attributes with the highest percentages from the second principal component, based on the PCA (see Figure 1). It is important to note that these attributes are different from the attributes determined from the first principal component. With a five-by-five neuron matrix, Figure 3 shows the classification results from this SOM evaluation on the same north-south line as Figure 2, and it identifies clearly several hydrocarbon contacts in the form of flat spots. These hydrocarbon contacts are confirmed by the well control.

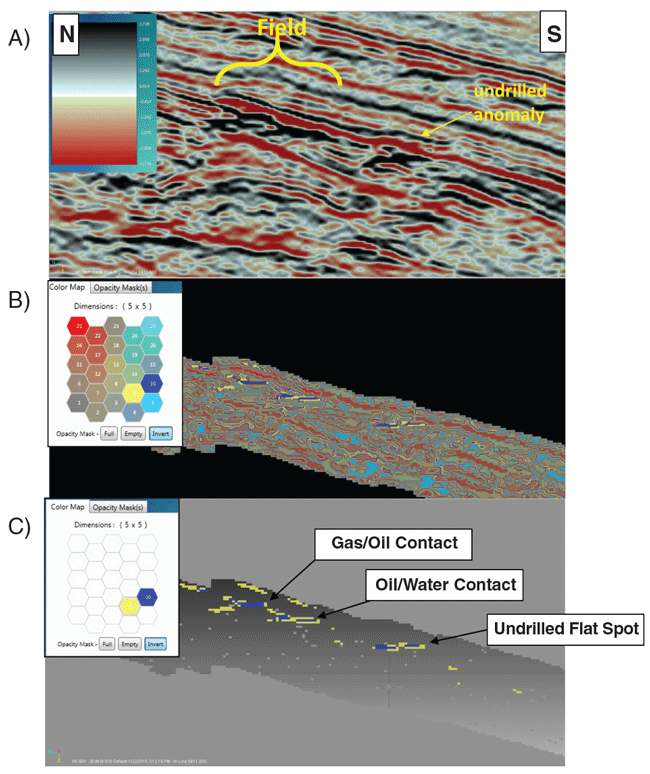

Figure 3B defines three apparent flat spots that are further isolated in Figure 3C, which displays these features with two neurons. The gas/oil contact in the field was very difficult to see in the original seismic data, but is well defined and can be mapped from this SOM analysis.
The oil/water contact in the field is represented by a flat spot that defines the overall base of the hydrocarbon reservoir. Hints of this oil/water contact were interpreted from the original amplitude data, but the second SOM classification provides important information to clearly define the areal extent of reservoir.
Downdip of the field is another apparent flat spot event that is undrilled and is similar to the flat spots identified in the field. Based on SOM evaluations A and B in the field, which reveal similar known attenuation and flat spot results, respectively, there is a high probability this undrilled feature contains hydrocarbons.
West Texas Case Study
Unlike the Gulf of Mexico case study, attribute analyses on the Fasken Ranch in the Permian Basin involved using a “recipe” of seismic attributes, based on their ability to sort out fluid properties, porosity trends and hydrocarbon sensitivities. Rather than use principal component analysis to see which attributes had the greatest variation in the data, targeted use of specific attributes helped solve an issue regarding conventional porosity zones within an unconventional depositional environment in the Spraberry and Wolfcamp formations.
The Fasken Ranch is located in portions of Andrews, Ector, Martin and Midland counties, Tx. The approximately 165,000-acre property, which consists of surface and mineral rights, is held privately. This case study shows the SOM analysis results for one well, the Fasken Oil and Ranch No. 303 FEE BI, which was drilled as a straight hole to a depth of 11,195 feet. The well was drilled through the Spraberry and Wolfcamp formations, and encountered a porosity zone from 8,245 to 8,270 feet measured depth.
This enabled the well to produce more than four times the normal cumulative production found in a typical vertical Spraberry well. The problem was being able to find that zone using conventional attribute analysis in the seismic data. Figure 4A depicts cross-line 516, which trends north-south and shows the intersection with well 303. The porosity zone is highlighted with a red circle.
Seven attributes were used in the neural analysis: attenuation, BE14-100 (amplitude volume), average energy, envelope time derivative, density (derived through prestack inversion), spectral decomposition envelop sub-band at 67.3 hertz, and sweetness.

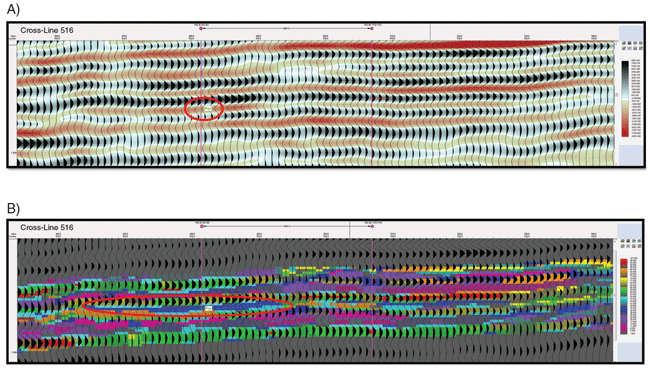

Figure 4B is the same cross-line 516, showing the results of classifying the seven attributes referenced. The red ellipse shows the pattern in the data that best represents the actual porosity zone encountered in the well, but could not be identified readily by conventional attribute analysis.

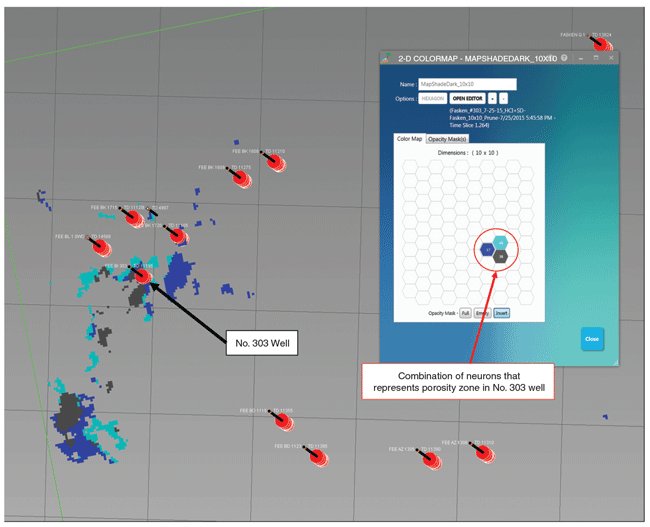

Figure 5 is a 3-D view of the cluster of neurons that best represent porosity. The ability to isolate specific neurons enables one to more easily visualize specific stratigraphic events in the data.
Conclusions
Seismic attributes help identify numerous geologic features in conventional seismic data. Applying principal component analysis can help interpreters identify seismic attributes that show the most variance in the data for a given geologic setting, and help them determine which attributes to use in a multiattribute analysis using self-organizing maps. Applying current computing technology, visualization techniques, and understanding of appropriate parameters for SOM enables interpreters to take multiple seismic attributes and identify the natural organizational patterns in the data.
Multiple-attribute analyses are beneficial when single attributes are indistinct. These natural patterns or clusters represent geologic information embedded in the data, and can help identify geologic features that often cannot be interpreted by any other means. Applying SOM to bring out geologic features and anomalies of significance may indicate this approach represents the next generation of advanced interpretation.
Editor’s Note: The authors wish to thank the staff of Geophysical Insights for researching and developing the applications used in this article. The seismic data for the Gulf of Mexico case study are courtesy of Petroleum Geo-Services. Thanks to T. Englehart for insight into the Gulf of Mexico case study. The authors also would like to acknowledge Glenn Winters and Dexter Harmon of Fasken Ranch for the use of the Midland Merge 3-D seismic survey in the West Texas case study.
Rocky Roden runs his own consulting company, Rocky Ridge Resources Inc., and works with oil companies around the world on interpretation technical issues, prospect generation, risk analysis evaluations, and reserve/resource calculations. He is a senior consulting geophysicist with Houston-based Geophysical Insights, helping develop advanced geophysical technology for interpretation. He also is a principal in the Rose and Associates DHI Risk Analysis Consortium, which is developing a seismic amplitude risk analysis program and worldwide prospect database. Roden also has worked with Seismic Microtechnology and Rock Solid Images on integrating advanced geophysical software applications. He holds a B.S. in oceanographic technology-geology from Lamar University and an M.S. in geological and geophysical oceanography from Texas A&M University.
Deborah King Sacrey is a geologist/geophysicist with 39 years of oil and gas exploration experience in the Texas and Louisiana Gulf Coast, and Mid-Continent areas. For the past three years, she has been part of a Geophysical Insights team working to bring the power of multiattribute neural analysis of seismic data to the geoscience public. Sacrey received a degree in geology from the University of Oklahoma in 1976, and immediately started working for Gulf Oil. She started her own company, Auburn Energy, in 1990, and built her first geophysical workstation using Kingdom software in 1995. She specializes in 2-D and 3-D interpretation for clients in the United States and internationally. Sacrey is a DPA certified petroleum geologist and DPA certified petroleum geophysicist.
